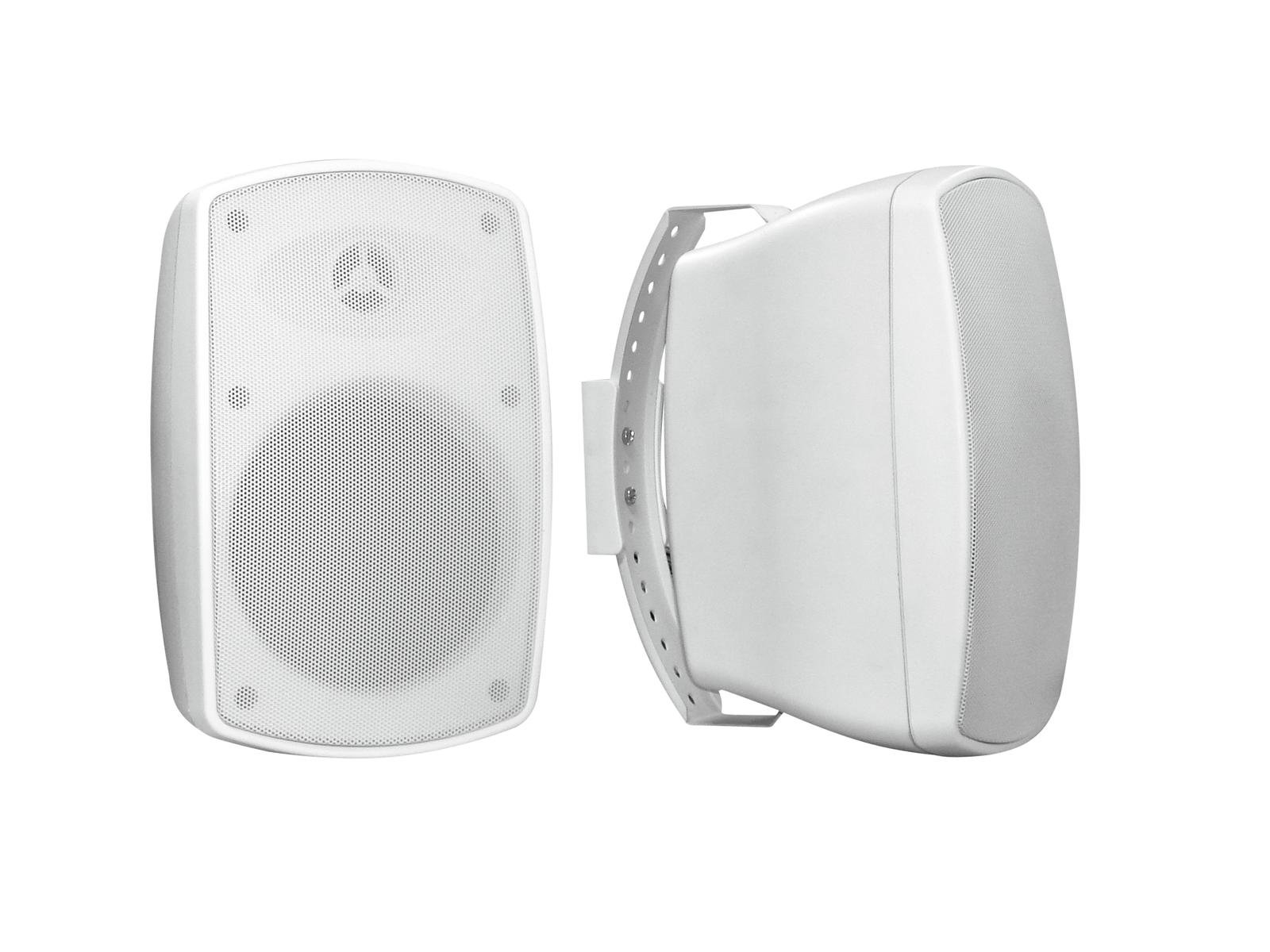

100V OD-6T Wall Speaker white


Weatherproof wall speaker pair

The 100 V sound reinforcement speakers OD-6T by OMNITRONIC convince by their very good sound image and are optimally suited for your indoor and outdoor use.

The 2-way system is equipped with a 16.5 cm woofer and a 2.5 cm dome tweeter with silk membrane. The wall-mounted speaker pair features a 100 V transformer with 4 power taps and a power switch with 8 ohm operating position.

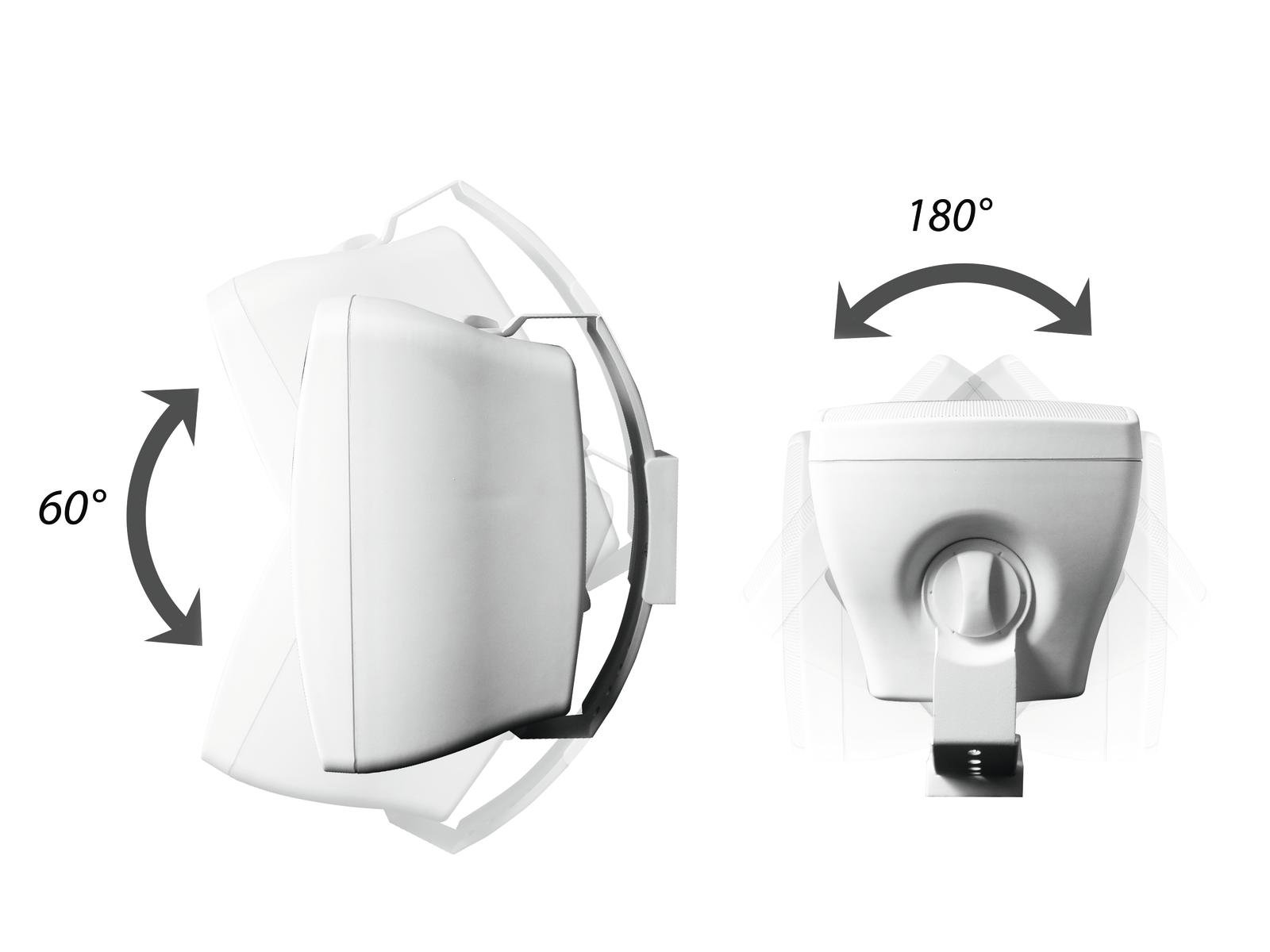

The swivel and tilt mounting bracket allows you to mount the OD-6T speaker cabinets to the wall or ceiling at any angle.

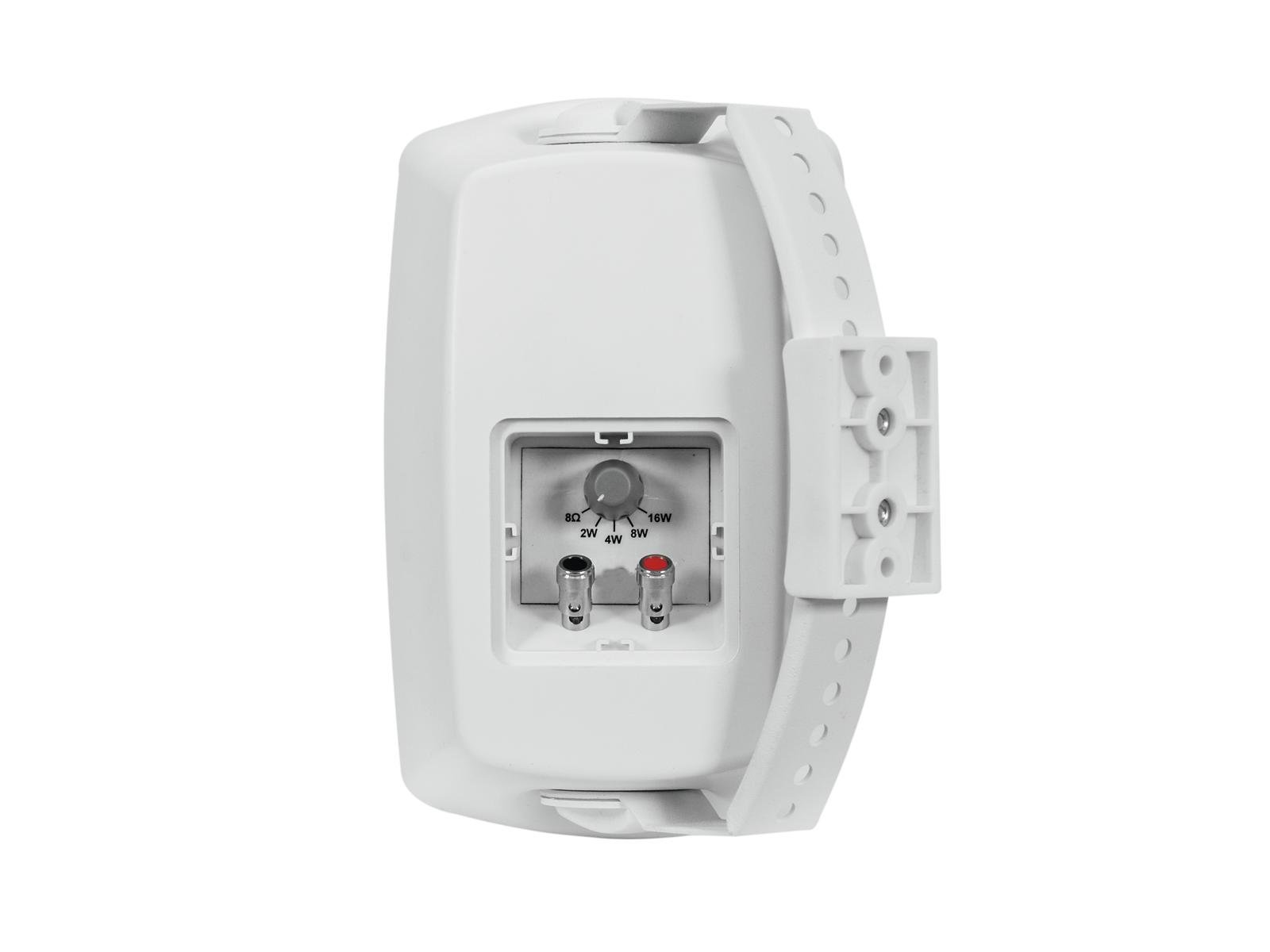

The weatherproof (IP65) plastic housing with metal grid also has a cover over the connections.



Weatherproof wall speaker pair (IP65)

  • 100 V PA speaker systems with an excellent sound for general applications
  • 2-way system with 16.5 cm woofer (6.5″) and 2.5 cm silk dome tweeter (1″)
  • Weatherproof (IP65) plastic cabinet with metal grille and cover for the connectors
  • 100 V transformer with 4 power taps (4 W, 8 W, 16 W and 32 W)
  • Power selector switch with 8 ohms operating position
  • Panning and tilting mounting bracket allows ceiling or wall installation in most varying angles
  • Connection via pole terminals
  • Packed as a pair
  • For indoor and outdoor PA applications
  • Suitable for outdoor use
Power supply: 100 V DC
IP classification: IP65
Rated power: 32 W RMS
Program power: 64 W
Frequency range: 50 – 20000 Hz
Sensitivity: 90 dB
Max. SPL: 93 dB
Dispersion angle: 170° x 170°
Impedance: 8 Ohm; 100 V ELA
Power tapping: 4W; 8W; 16W; 32W RMS via Selector switch switchable
Connections: Input: speakers via screw terminal
Speakers: 1 x woofer (6.5″) approx. 17 cm
Horn (1″) approx 2,5 cm
Type of speaker: Compact cabinet speaker
Dimension: Width: 19.5 cm
Depth: 19 cm
Height: 29 cm
Weight: 7.10 kg
